Add an example to an existing PowerPlot or GridPlot

Add example arrow(s) to an existing figure created by PowerPlot or GridPlot.

AddExample is a higher level plotting function, so it does not know anything about the figure it draws on top off. Therefore, take care your figure makes sense, by supplying the same arguments x and slicer that you supplied to the PowerPlot or link{GridPlot} you are drawing on top off: With slicer you define the plotted plain, with example the value on the x-axis where the arrow starts. To be sure of a sensible result, use the argument example inside Powerplot or GridPlot.

Usage

AddExample(
  x,
  slicer = NULL,
  example = NULL,
  find_lowest = TRUE,
  target_value = NULL,
  target_at_least = TRUE,
  method = "step",
  summary_function = mean,
  col = grDevices::grey.colors(1, 0.2, 0.2),
  example_text = TRUE,
  ...
)

Arguments

x, target_value, target_at_least, find_lowest, method, example_text, summary_function: See help for PowerPlot.
slicer: A list, internally passed on to ArraySlicer to cut out a (multidimensional) slice from x. You can achieve the same by appending "slicing" inside argument example. However, to assure that the result of AddExample is consistent with the figure it draws on top of (PowerPlot or GridPlot), copy the arguments x and slicer given to PowerPlot or GridPlot to AddTarget.
example: A list, defining at which value (list element value) of which parameter(s) (list element name(s)) the example is drawn for a power of target_value. You may supply par vector(s) longer than 1 for multiple examples. If example contains multiple parameters to define the example, all must contain a vector of the same length. Be aware that the first element of example defines the parameter x-axis, so this function is not fool proof. See argument slicer above. If x has only one dimention, the example needs not be defined.
col: Color of arrow and text drawn.
...: Further arguments are passed to the two calls of function graphics::arrows drawing the nicked arrow.

Value

invisibly NULL

Details

arguments `slicer` and `example`

slicer takes the slice of x that is in the figure, example defines at which value of which parameter, the example is drawn. These arguments' use is the same as in PowerPlot and GridPlot. If you want to make sure that the result of AddExample is consistent with a figure previously created using PowerPlot or GridPlot, copy the argument slicer to such function to AddExample, and define your example in example.

Note however, that:

slicer = list(a = c(1, 2)) and example = list(b = c(3, 4))

has the same result as:

example = list(b = c(3, 4) and a = c(1, 2)) (not defining slicer)

Importantly, the the order of example matters here, where the first element defines the x-axis.

multiple examples

Argument example may contain vectors with length longer than one to draw multiple examples.

Author

Gilles Dutilh

Examples


## For more examples, see ?PowerPlot

## Set up a grid of n, delta and sd:
sse_pars = list(
  n = seq(from = 10, to = 60, by = 4),
  delta = seq(from = 0.5, to = 1.5, by = 0.1), # effect size
  sd = seq(.1, 1.1, .2)) # Standard deviation
## Define a power function using these parameters:
PowFun <- function(n, delta, sd){ # power for a t-test at alpha = .05
  ptt = power.t.test(n = n/2, delta = delta, sd = sd,
                     sig.level = 0.05)
  return(ptt$power)
}
## Evaluate PowFun across the grid defined by sse_pars:
power_array = PowerGrid(pars = sse_pars, fun = PowFun, n_iter = NA)

## ======================
## PowerPlot
## ======================
PowerPlot(power_array,
          slicer = list(sd = .7),
          )
AddExample(power_array,
           slicer = list(sd = .7), # be sure to cut out the same plain as above
           example = list(delta = .9),
           target_value = .9,
           col = 'blue')
AddExample(power_array,
           slicer = list(sd = .7),
           example = list(delta = c(.7, 1)), # multiple examples
           target_value = .9,
           col = 'yellow')
## Careful, you can move the slicer argument to example:
AddExample(power_array,
           example = list(delta = 1.2, sd = .7), # delta (x-axis) first
           target_value = .9,
           col = 'green')
## Careful, because you can put the wrong value on x-axis!
AddExample(power_array,
           example = list(sd = .7, delta = 1.2), # sd first?!
           target_value = .9,
           col = 'red')


## ======================
## GridPlot
## ======================

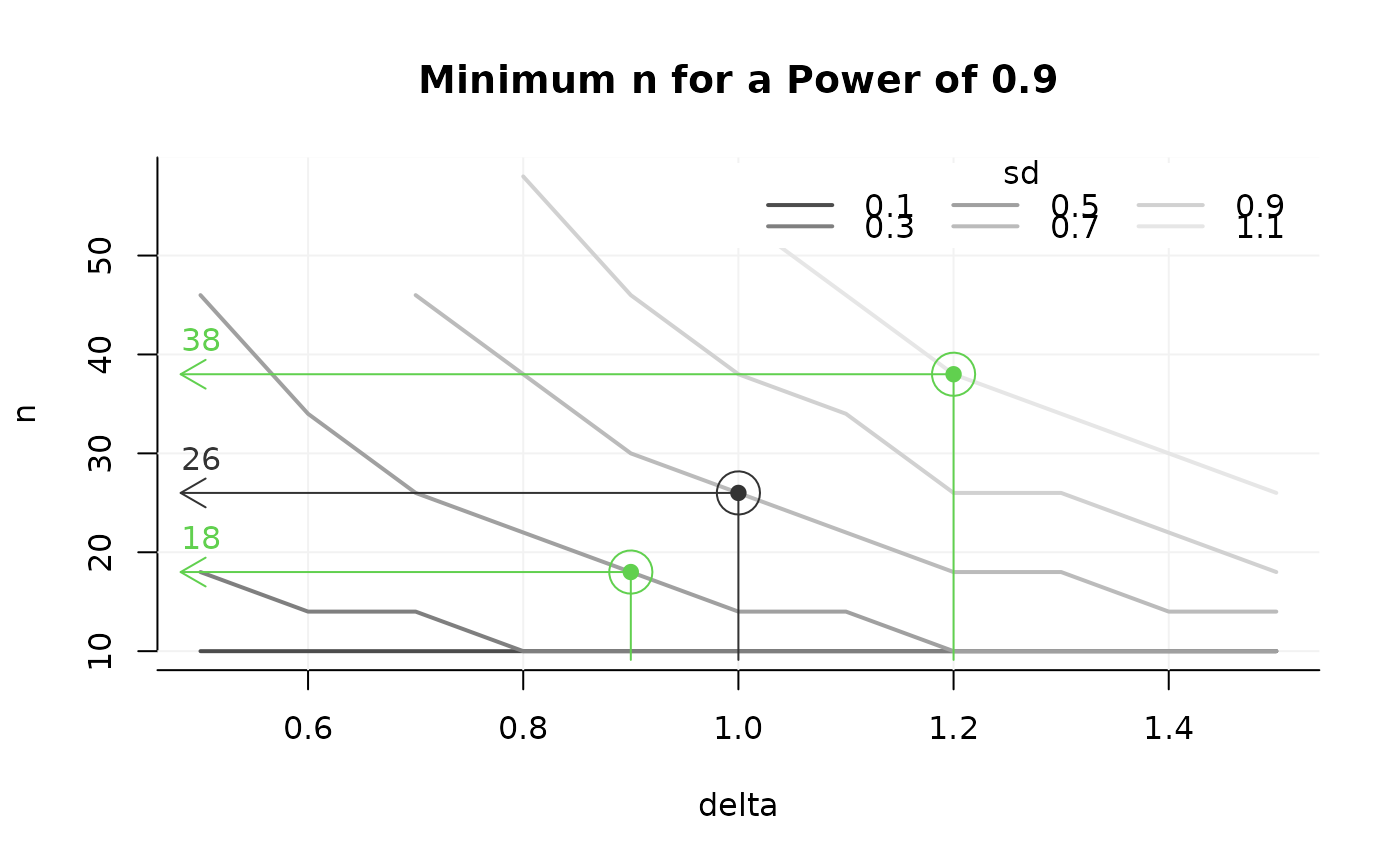

GridPlot(power_array, target_value = .9)
#> Warning: At some combinations of `x_par` and `l_par`, no `y_par` was found that yielded the required target value, which may result in lines ending abruptly. In most common use cases, you may want to increasing the range of n.
AddExample(power_array,
           example = list(delta = 1, sd = .7),
           target_value = .9
           )
## two examples
AddExample(power_array,
           example = list(delta = c(.9, 1.2), sd = c(.5, 1.1)),
           target_value = .9, col = 3
           )
